PCBA Manufacturer in China
FX PCB Co., Ltd. provides turnkey PCB assembly from our own SMT plant — PCB fabrication, component sourcing, SMT & DIP assembly, testing and final assembly under one roof. From 5-piece prototypes to volume production.
MOQ from 5 pcs · 11 Yamaha placement machines · 6M–7M placements per day · ISO 9001 · ISO 13485 · IATF 16949
SMT Capability
| Item | Capability |
|---|---|
| PCB Size | 50 × 50 mm to 810 × 490 mm |
| PCB Thickness | 0.75 – 4.0 mm |
| Board Types | Rigid PCB, FPC, Rigid-Flex PCB |
| Smallest Component | 01005 (imperial) |
| Min. Component Gap | 0.25 mm (QFP / QFN / BGA) |
| Max. Component Height | 15 mm |
| Printing Accuracy | ±0.015 mm |
| Placement Accuracy | ±0.035 mm |
| Daily Capacity | 6,000,000 – 7,000,000 placements |

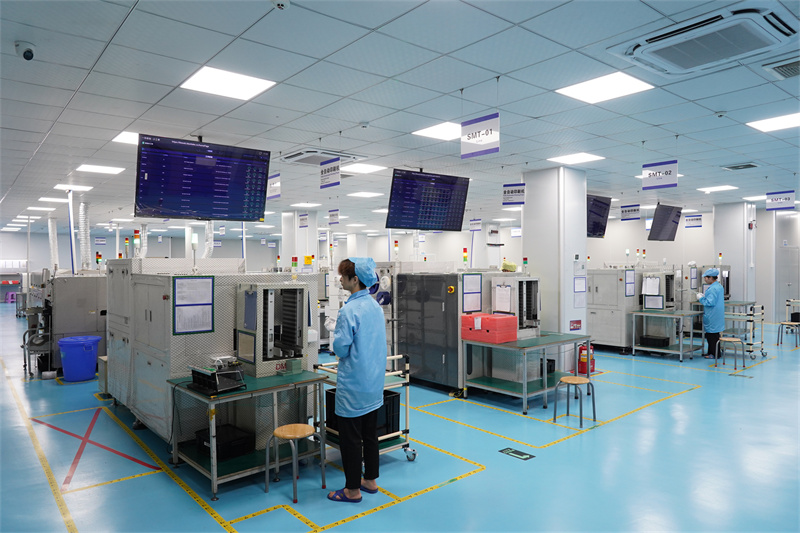

Equipment highlights: 11 Yamaha high-speed placement machines (YSM20R ×5, YSM10 ×6), 6 automatic solder paste printers, 3 SPI systems, dual-track in-line AOI, X-ray inspection for BGA, wave soldering with an 8 m DIP line, BGA rework station, laser marking and full assembly lines.
Turnkey Assembly Process
- DFM review of Gerber & BOM
- PCB fabrication in-house
- Component sourcing with full traceability
- Solder paste printing + SPI
- SMT placement + reflow
- AOI & X-ray inspection

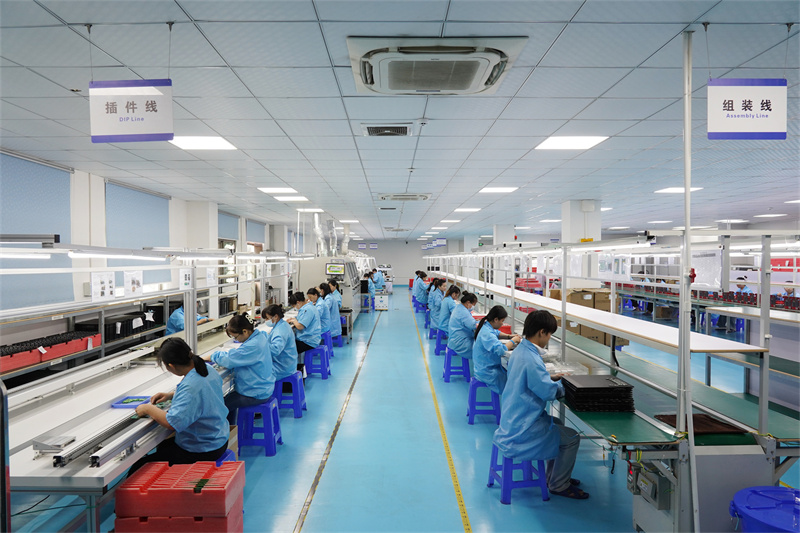

- DIP / wave soldering & hand assembly
- Testing, final assembly & packing
Learn more about our turnkey PCB assembly services.
Component Sourcing & Traceability
Every component is sourced through authorized channels and verified at incoming inspection (LCR measurement, marking and date-code checks). Lot and date codes are recorded against your order, so every board we ship can be traced back to its component batches. First-article inspection confirms the first board against your BOM before the run continues, and X-ray inspection verifies BGA and QFN soldering that AOI cannot see. If a part is obsolete or long-lead, our engineers propose verified equivalents for your approval — we never substitute a component without your written confirmation.
Testing & Quality
- SPI (3D solder paste inspection) ×3

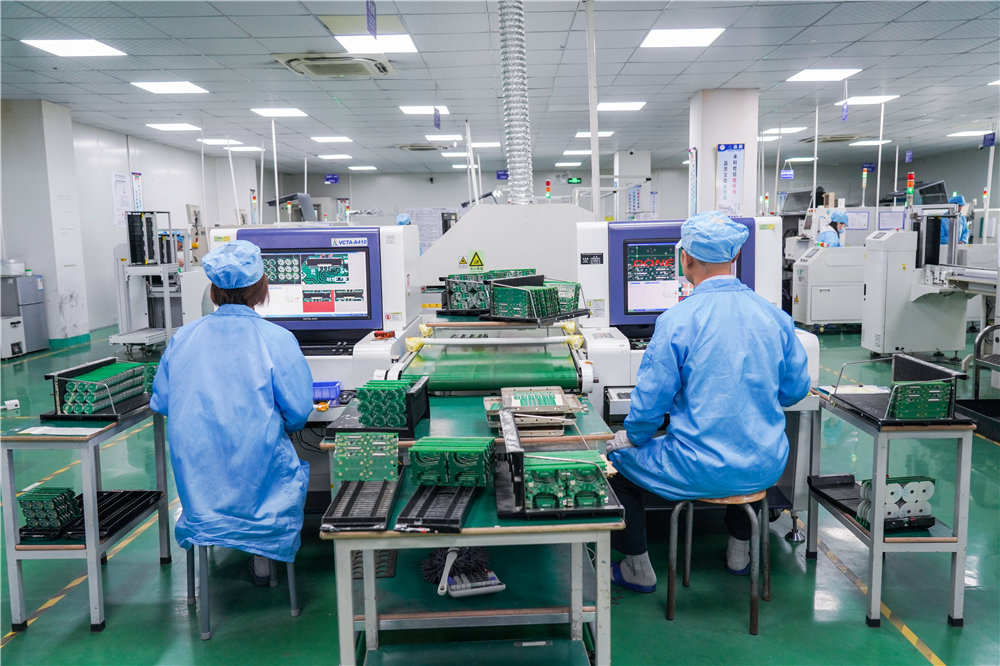

- In-line dual-track AOI + off-line AOI
- X-ray inspection for BGA assemblies, plus X-ray component counting
- First-article tester on every new job
- IQC incoming inspection with digital bridges; oscilloscopes and spectral analysis for LED products
- BGA rework station; dry-ice cleaning for finished boards
Industries We Serve
Industrial control · Power supplies · LED lighting · Consumer electronics · Automotive electronics (IATF 16949:2016 certified production) · Medical devices (ISO 13485:2016 certified PCBA manufacturing)
See also: Ceramic PCB Manufacturer · Turnkey PCB Assembly
Production Terms
| Item | Terms |
|---|---|
| Minimum order | 5 pcs |
| Prototype lead time | 2 weeks |
| Mass production lead time | 3–10 weeks, depending on component lead times |
| Assembly types | SMT, DIP / wave soldering, mixed assembly, final product assembly (screw fastening, laser marking, cleaning) |
Certifications

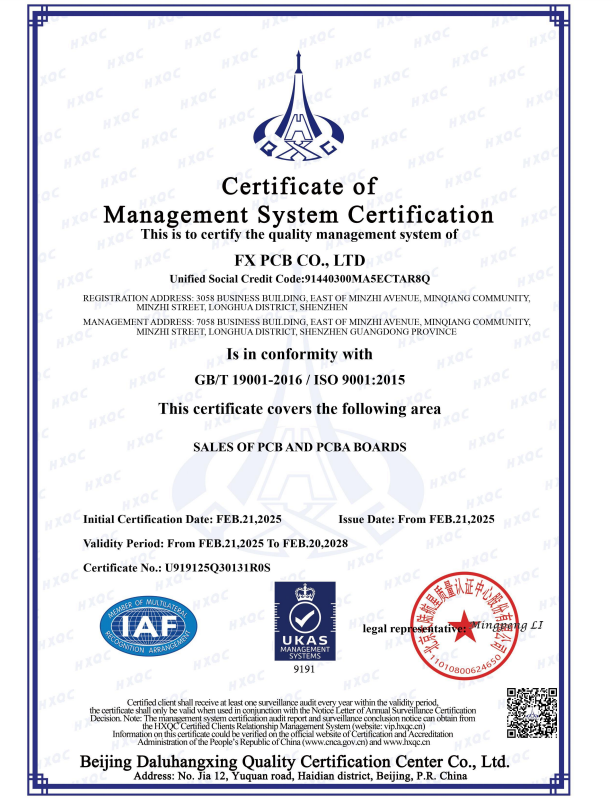

ISO 9001:2015 — FX PCB Co., Ltd. · ISO 13485:2016 — medical device PCBA manufacturing · IATF 16949:2016 — automotive PCB & PCBA manufacturing
Why FX PCB
- One partner for bare PCB + PCBA: fabrication and assembly in our own facilities, no hand-offs between vendors
- Engineering review before production: DFM feedback on every order
- Traceable sourcing: no grey-market components, no unapproved substitutions
- Low entry point: prototypes from 5 pcs, the same lines run your volume orders
